60*60cm Gypsum Ceiling Tile Production Line Rhino Board Ceiling Gypsum Making Machine

This gypsum board production line laminates decorative films onto paper-faced plasterboard using specialized sticking and pressing technology, creating unique visual effects for personalized decoration needs.

• Environmentally friendly production process
• Wide variety of patterns, textures, and colors available
• Dust-free, moisture-proof, and mold-resistant properties
• Easy to clean and maintain
• Simple operation requiring no secondary decoration

PVC film laminated gypsum board offers waterproof, fireproof, and soundproof benefits, making it ideal for ceilings and partition walls in commercial buildings, supermarkets, hospitals, theaters, and other public spaces.

• Automatic board feeding
• Pre-dusting
• Coating
• Drying and conveying
• Aluminium foil unwinding
• Pneumatic lamination for film and gypsum board
• Lengthwise cutting
• Horizontal cutting
• Belt conveyor output
• Autolift stacking conveying
• Stretch packing
• Conveying
• Finished products stacking

1. Automatic Loading Device
Ensures continuous material feeding into the production line.

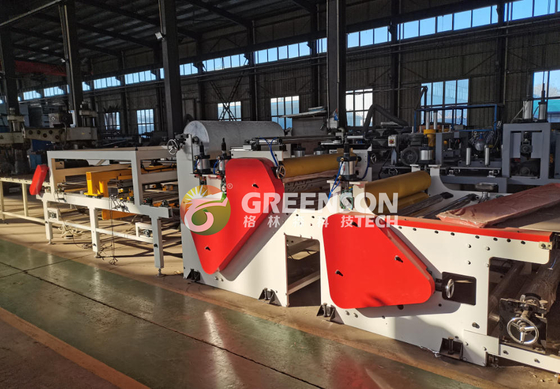

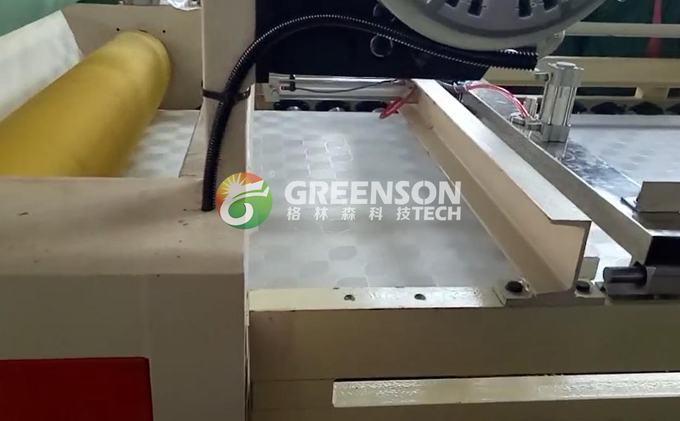

2. Lamination Machine
Combines decorative films with boards through a precise process: board placement on rollers → dust collection → glue coating → glue qualification on guide rollers → film combination → pressure rolling through press rollers → final recombination.

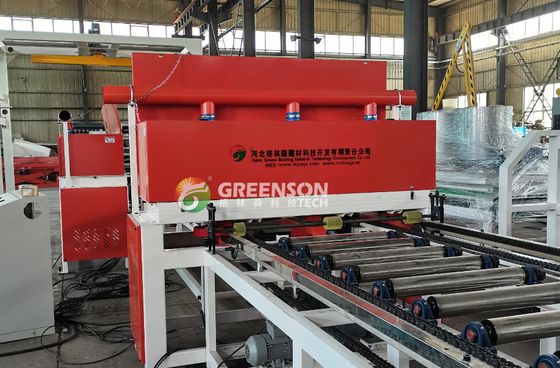

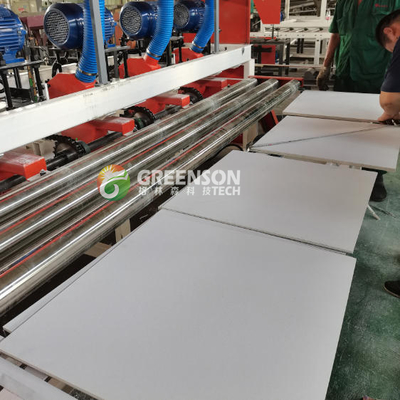

3. Automatic Cutting Machine
Precisely cuts laminated gypsum boards to required dimensions through a two-stage cutting process with conveying rollers.

4. Electrostatic Pulse Bag Style Dust Collector
Features large dust exhaust fan and pipe system for efficient dust removal during cutting operations.

5. Automatic Overturn System
6. Automatic Stacking Machine
7. Automatic Sealing Machine

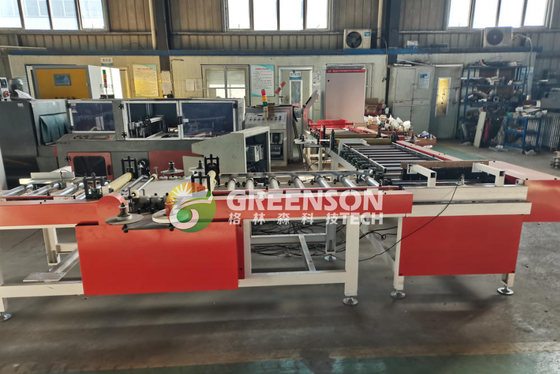

8. Automatic Package Machine
Advanced packaging system that wraps finished boards with protective film, heated to create a moisture-proof seal.
