Rock Wool Production Line with Mixing Forming and Water Cutting Processes for Mineral Wool Board Manufacturing

Rock Wool Production Line with Mixing Forming and Water Cutting Processes for Mineral Wool Board Manufacturing

نام تجاری:	Greenson
مقدار تولیدی:	1
قیمت:	US $2000000-4000000
شرایط پرداخت:	L/C، T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

هبی

نام محصول:

ماشین آلات مصالح ساختمانی ماشین ساخت پشم سنگ

کلمه کلیدی:

کارخانه تولید پشم معدنی پشم سنگ

ظرفیت تولید:

10000-50000Tons/سال

ضخامت:

50-200 میلی متر

تراکم:

100-200 کیلوگرم/m3

روند اصلی:

مخلوط کردن، شکل دادن، برش آب، خشک کردن

مقاومت در برابر آتش:

کلاس A1

طول:

1200-2400 میلی متر

عرض:

600-1200 میلی متر

خدمات پس از فروش:

مهندسین در دسترس برای خدمات ماشین آلات در خارج از کشور

برجسته کردن:

Mixing Process Rock Wool Production Line,Forming Process Mineral Wool Board Production Line,Water Cutting Process Stone Wool Production Line

Forming Process Mineral Wool Board Production Line

Water Cutting Process Stone Wool Production Line

توضیحات محصول

Building Material Machinery Making Rock Wool Machine

The raw materials used in rock wool production include basalt, dolomite, binders, etc. The raw materials are loaded into the hopper by the elevator, and the melting furnace is heated and melted into the melt flow tank. The lava flow is cooled and spun into fibers by the centrifuge, and then sprayed into the fiber molding room. The binder is added during the spraying process, and the fibers are heated by the negative pressure wind. Pull down to the mesh belt to form the original felt.

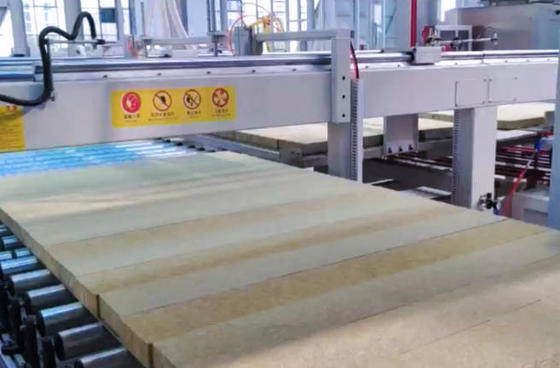

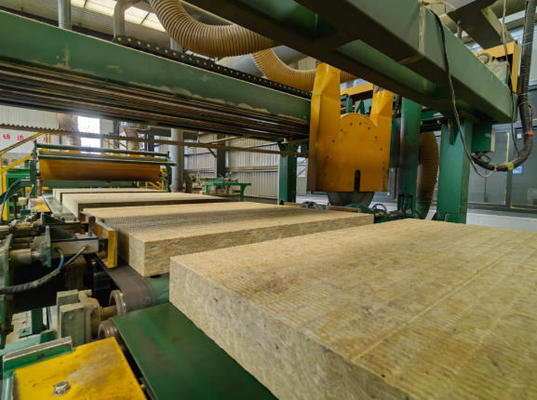

The mesh belt transports the original felt to the pendulum cloth machine to swing the cloth. The original felt after the swing cloth is transported to the curing furnace by the cloth machine, and runs forward between the upper and lower chain belts. The hot air blower blows the hot air into the curing furnace. The cotton felt in the furnace is solidified, and the solidified products are cut, first longitudinally cutting, and then transversely cutting, and the finished product is packaged and put into storage.

Product Parameters

Specification	Details
Application	Manufacture Rock Wool Blanket, Rock Wool Board
Capacity	10000tons/year, 20000tons/year, 30000tons/year, 40000tons/year, 50000tons/year, 60000tons/year, 70000tons/year, 80000tons/year
Raw materials	Basalt, dolomite, binders and so on
Main energy supply system	Raw coal energy supply system Power energy supply system Natural gas energy supply system
