Easy To Operate High Efficent Rock Wool Polyurethane Foam Panel Production Line with PLC Numerical Control System

Easy To Operate High Efficent Rock Wool Polyurethane Foam Panel Production Line with PLC Numerical Control System

نام تجاری:	Greenson
مقدار تولیدی:	1
قیمت:	$700000-$800000
شرایط پرداخت:	L/C، T/T

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

هبی

نام محصول:

خط تولید پانل فوم پلی اورتان پشم سنگ PU خط تولید پرس پانل ساندویچ

کلمه کلیدی:

خط تولید دستگاه ساندویچ پانل شکل دهی مداوم PU برای خانه پیش ساخته

رنگ:

نیاز مشتری

بندر اعزام:

تیانجین

اجزای اصلی:

موتور

نکات کلیدی فروش:

آسان برای کار

برنامه:

سقف و دیوار

ولتاژ:

3 فاز 380 ولت 50 هرتز (قابل تغییر در صورت نیاز)

مزایا:

کارایی بالا

توضیحات محصول

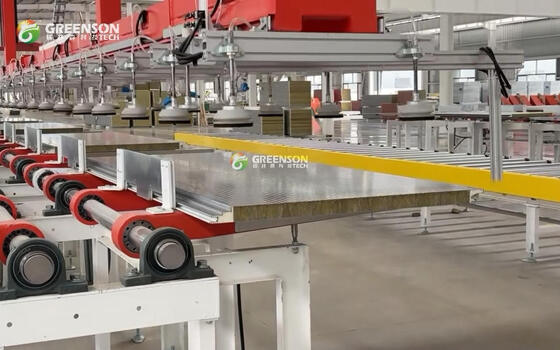

Rock Wool Polyurethane Foam Panel Production Line PU Sandwich Panel Press Production Line

Product Overview

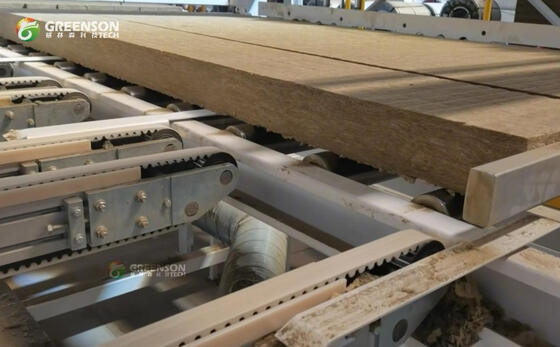

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Using a PLC numerical control system and a human-machine interface, the entire process of loading, gluing, laminating, pressing, cutting to length, and finished product palletizing is automated. It flexibly adapts to multi-specification and multi-core material production, offering high precision, low waste, minimal labor, stable operation, and low failure rates.

The entire line has a compact layout, is energy-saving and noise-reducing, and can quickly mass-produce high-quality composite boards, sandwich panels, and integrated insulation and decorative panels. It comprehensively enhances production capacity and product competitiveness, making it an optimal choice of equipment for construction material enterprises seeking expansion and upgrading.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting

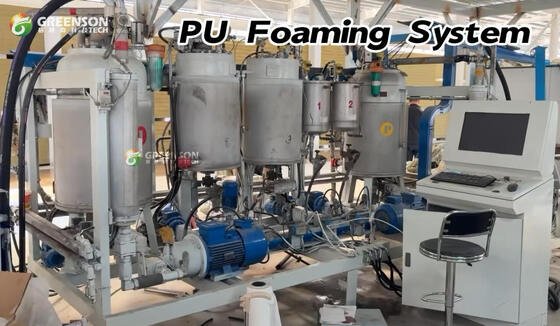

Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

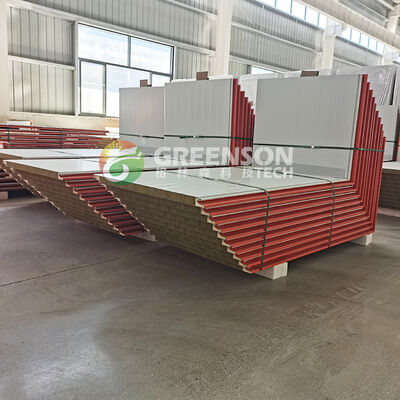

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
